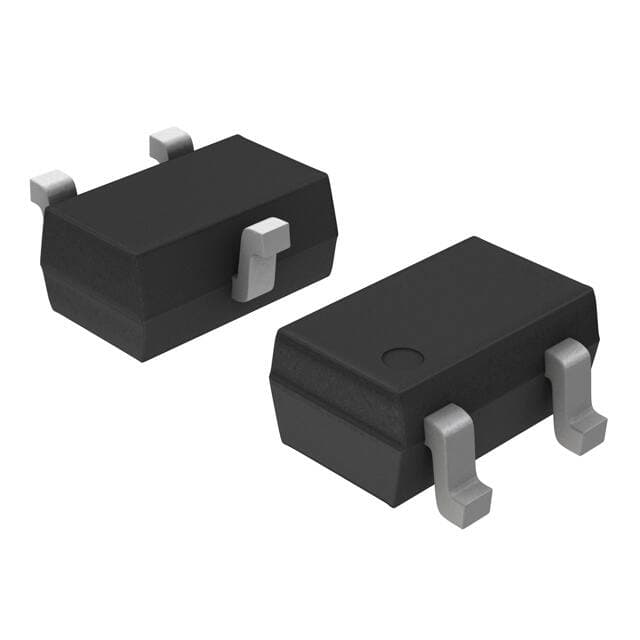

ON Semiconductor BAT54CWT1G
ON Semiconductor BAT54CWT1G

ON Semiconductor BAT54CWT1G

Manufacturer No:

BAT54CWT1G

Manufacturer:

ON Semiconductor

Package:

SC-70, SOT-323

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Small Signal =< 200mA (Io), Any Speed -55°C~125°C 200mA 30V-DC 2-Element SC-70, SOT-323 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

BAT54CWT1G information

ON Semiconductor BAT54CWT1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BAT54CWT1G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 5 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-70, SOT-323
  • Number of Pins
  • 3
  • Weight
  • 30mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Cut Tape (CT)
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.70
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 30V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • BAT54CW
  • Pin Count
  • 3
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 2?A @ 25V
  • Power Dissipation
  • 200mW
  • Voltage - Forward (Vf) (Max) @ If
  • 800mV @ 100mA
  • Forward Current
  • 200mA
  • Max Reverse Leakage Current
  • 2?A
  • Operating Temperature - Junction
  • -55°C~125°C
  • Max Surge Current
  • 600mA
  • Output Current-Max
  • 0.2A
  • Current - Average Rectified (Io)
  • 200mA DC
  • Forward Voltage
  • 800mV
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 200mA
  • Reverse Recovery Time
  • 5 ns
  • Peak Reverse Current
  • 2?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V
  • Peak Non-Repetitive Surge Current
  • 600mA

Download datasheets and manufacturer documentation for ON Semiconductor BAT54CWT1G.

Datasheets:

Environmental Information:

PCN Obsolescence/ EOL:

PCN Design/Specification:

PCN Packaging:

TechnicalDrawing:

RohsStatement:

BAT54CWT1G Overview


When the forward voltage is set to 800mV, this device will operate.Array is capable of supporting a maximum output voltage of 0.2A.Monarrayoring the surge current and preventing array from exceeding 600mA should be the rule.When the forward voltage is set to 200mA, this device will operate.A current of 200mA can be drawn from the part.Devices like this one are powered with a reverse voltage peak of 2?A.Its maximal reverse leakage current is 2?A, which is the current from that semiconductor device when the device is reverse biased.This electronic or electrical device creates 200mW of heat (energy loss) as a derivative of its primary action.

BAT54CWT1G Features


800mV forward voltage
a maximum output voltage of 0.2A
a peak voltage of 2?A
a reverse voltage peak of 2?A


BAT54CWT1G Applications


There are a lot of ON Semiconductor
BAT54CWT1G applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
