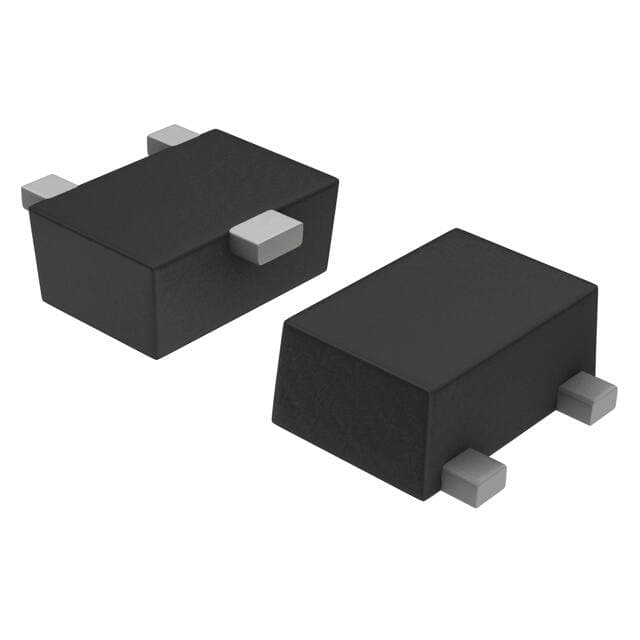

ON Semiconductor BAS16M3T5G
ON Semiconductor BAS16M3T5G

ON Semiconductor BAS16M3T5G

Manufacturer No:

BAS16M3T5G

Manufacturer:

ON Semiconductor

Package:

SOT-723

Description:

Standard Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1.25V @ 150mA -55°C~150°C 1?A @ 100V 3-Termination Tape & Reel (TR) SOT-723 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAS16M3T5G information

ON Semiconductor BAS16M3T5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BAS16M3T5G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Tin
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOT-723
  • Surface Mount
  • YES
  • Number of Pins
  • 3
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.70
  • Subcategory
  • Rectifier Diodes
  • Max Power Dissipation
  • 260mW
  • Terminal Position
  • DUAL
  • Terminal Form
  • FLAT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 1?A @ 100V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.25V @ 150mA
  • Forward Current
  • 200mA
  • Max Reverse Leakage Current
  • 1?A
  • Operating Temperature - Junction
  • -55°C~150°C
  • Max Surge Current
  • 500mA
  • Output Current-Max
  • 0.5A
  • Halogen Free
  • Halogen Free
  • Current - Average Rectified (Io)
  • 200mA DC
  • Forward Voltage
  • 1.25V
  • Max Reverse Voltage (DC)
  • 100V
  • Average Rectified Current
  • 200mA
  • Reverse Recovery Time
  • 6 ns
  • Peak Reverse Current
  • 1?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 75V
  • Capacitance @ Vr, F
  • 2pF @ 0V 1MHz
  • Recovery Time
  • 6 ns
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ON Semiconductor BAS16M3T5G.

Datasheets:

BAS16M3T5G Overview


A maximum reverse leakage current of 1?A volts is produced by this device.This device has an average rectified current of 200mA volts.Forward current is allowed to reach a value of zero.The least amount of 260mW heat is generated by electronic or electrical devices (loss of energy).Surge currents can be used up to 500mA.The maximum output current is 0.5A.Datasheets indicate that the peak reverse is 1?A.

BAS16M3T5G Features


a maximal reverse leakage current of 1?A volts
an average rectified current of 200mA volts
the least amount of 260mW heat (energy loss)
0.5A is the maximum value
the peak reverse is 1?A


BAS16M3T5G Applications


There are a lot of ON Semiconductor
BAS16M3T5G applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
