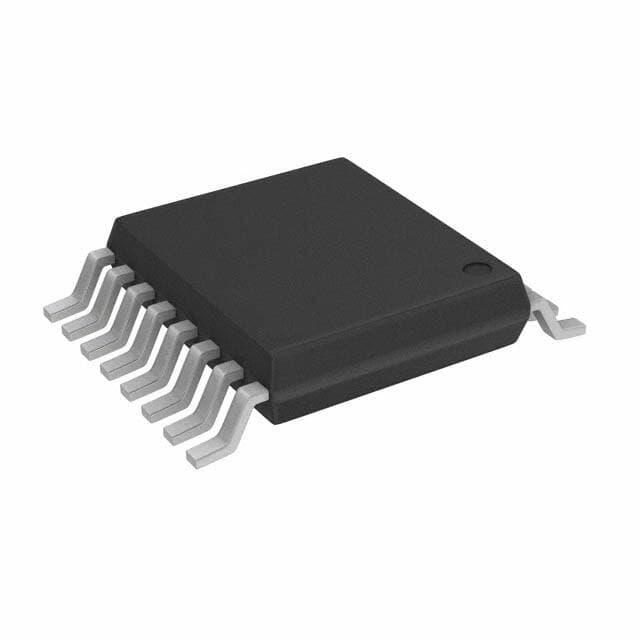

ON Semiconductor 74VHC595MTCX
Manufacturer No:
74VHC595MTCX
Manufacturer:
Package:
16-TSSOP (0.173, 4.40mm Width)
Description:
Shift Register 2/5.5V -40°C~85°C Shift Register 74VHC Series 74VHC595 16 Pin 3.3V 16-TSSOP (0.173, 4.40mm Width)
Quantity:
Delivery:
Payment:
In Stock :100
Price not displayed? Please send an RFQ, and we will respond immediately.
74VHC595MTCX information
ON Semiconductor 74VHC595MTCX technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 74VHC595MTCX.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time
- 9 Weeks
- Contact Plating
- Gold
- Package / Case
- 16-TSSOP (0.173, 4.40mm Width)
- Mounting Type
- Surface Mount
- Mount
- Surface Mount
- Number of Pins
- 16
- Weight
- 173mg
- Published
- 2007
- Series
- 74VHC
- Packaging
- Tape & Reel (TR)
- Operating Temperature
- -40°C~85°C
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Technology
- CMOS
- Voltage - Supply
- 2V~5.5V
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Supply Voltage
- 3.3V
- Frequency
- 115MHz
- Function
- Serial to Parallel, Serial
- Output Type
- Tri-State
- Supply Voltage-Max (Vsup)
- 5.5V
- Power Supplies
- 2/5.5V
- Supply Voltage-Min (Vsup)
- 2V
- Load Capacitance
- 50pF
- Propagation Delay
- 18.5 ns
- Quiescent Current
- 4?A
- Turn On Delay Time
- 18.5 ns
- Family
- AHC/VHC
- Logic Function
- Shift Register
- Direction
- Unidirectional
- Output Characteristics
- 3-STATE
- Logic Type
- Shift Register
- Output Polarity
- TRUE
- Number of Bits per Element
- 8
- Trigger Type
- POSITIVE EDGE
- Input Current
- 100nA
- Number of Output Lines
- 1
- Height
- 900?m
- Length
- 5mm
- Width
- 4.4mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ON Semiconductor 74VHC595MTCX.
Datasheets:
Environmental Information:
PCN Design/Specification:
74VHC595MTCX Overview
16-TSSOP (0.173, 4.40mm Width) is a package containing the embedded device. Taking the total number of terminations on the chip and adding them up, we get 16. A Tape & Reel (TR) case is used to pack it. The part operates at 3.3V voltage. It is equipped with a pin count of 16. It is recommended that the mount should be done by Surface Mount. There is an electronic component in the AHC/VHC. Its mounting method is Surface Mount. -40°C~85°C is the range of operating temperatures for the device. During operation, the voltage is within the range of 2V~5.5V. 74VHC is the series number of this electrical component. A 74VHC595 family can be used to search for similar parts. For this part, the minimum supply voltage (Vsup) should not be less than 2V. Devices with voltage delivery capabilities of 2/5.5V are available. Ideally, the maximum supply voltage (Vsup) should not exceed 5.5V. A total of 1 output lines are available for operation. It runs on a quiescent current of 4?A. It runs at 115MHz.
74VHC595MTCX Features
With 16 pins
Mounted in Surface Mount type.
Based on 74VHC595 family
It supplies 2/5.5V power
With 1 output lines
Quiescent Current at 4?A
74VHC595MTCX Applications
There are a lot of ON Semiconductor
74VHC595MTCX Shift Registers applications.
- Data Processors
- Pseudo Random Pattern Generator
- Pulse Extenders
- Pattern Recognizers
- Interconnectors
- Counter
- Data manipulation
- Delay Line
- Generate time delay toward digital circuits
- Parallel data
