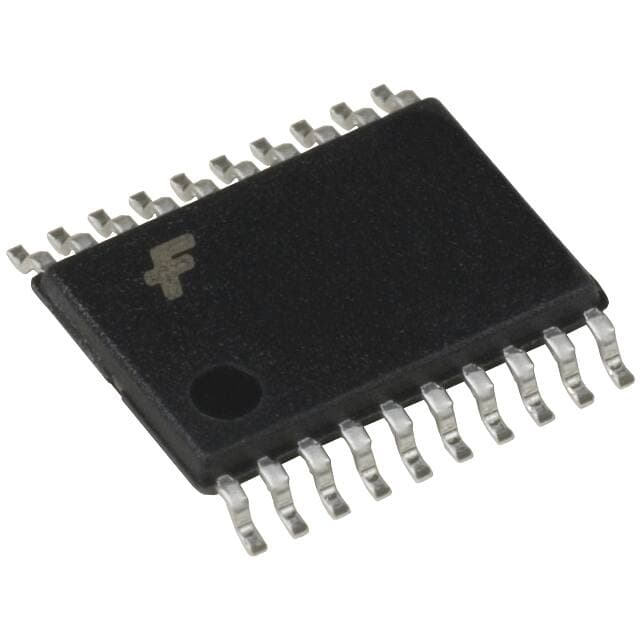

ON Semiconductor 74ACT244MTCX

Manufacturer No:

74ACT244MTCX

Manufacturer:

ON Semiconductor

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

DUAL Buffer, Non-Inverting 4.5V~5.5V 3-State Buffers 74ACT Series 74ACT244 4 Bit per Element 20-TSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

74ACT244MTCX information

ON Semiconductor 74ACT244MTCX technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 74ACT244MTCX.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
8 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-TSSOP (0.173, 4.40mm Width)

Number of Pins
20

Weight
191mg

Number of Elements
2

Operating Temperature
-40Â°C~85Â°C TA

Packaging
Tape & Reel (TR)

Series
74ACT

Published
2008

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Packing Method
TAPE AND REEL

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
2

Terminal Pitch
0.65mm

Base Part Number
74ACT244

Output Type
3-State

Operating Supply Voltage
5V

Polarity
Non-Inverting

Power Supplies
5V

Number of Circuits
8

Load Capacitance
50pF

Number of Ports
2

Propagation Delay
9 ns

Quiescent Current
4Î¼A

Turn On Delay Time
10.5 ns

Family
ACT

Logic Function
Buffer, Inverting

Logic Type
Buffer, Non-Inverting

Number of Bits per Element
4

Prop. Delay@Nom-Sup
10 ns

Control Type
ENABLE LOW

Number of Output Lines
3

Height
300Î¼m

Length
6.5mm

Width
4.4mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for ON Semiconductor 74ACT244MTCX.

74ACT244MTCX Overview

The 20-TSSOP (0.173, 4.40mm Width) package is neat. In order to package this voltage buffer, the Tape & Reel (TR) external package is used. There is a Surface Mount mount version of this digital buffer available for purchase. Buffer, Non-Inverting logic integrated circuits have a wide range of applications, including this one. A supply voltage of 4.5V~5.5V is applied to this network transceiver to supply it with power. Buffers such as this one are designed to operate at temperatures as high as -40Â°C~85Â°C TA. Digital buffer is capable of handling 3-State outputs. One of the 74ACT series network transceivers. The ethernet transceiver has 20 terminations with different functions. There is a voltage requirement of 5V. Electronic parts from the ACT family are used in this part. This logical driver can be used in Surface Mount different applications. The pin count is 20. 2 ports are included in this logic device. Each element uses 4 bits. There are other parts related to this electronic part on 74ACT244. ENABLE LOW control technology allows the logical driver to start up. As long as the electronic component is in the quiescent state, it uses 4Î¼A. Use a 5V power supply if possible. Generally, it comes in a TAPE AND REEL package. When running the electronic part in a circuit, it is recommended that users apply 5V supply voltage. In total, 3 signal lines can be output by the logical driver. 8 circuits form the basis of its operation.

74ACT244MTCX Features

Logic Type: Buffer, Non-Inverting
ACT Family
74ACT Series
3-State Output Type

74ACT244MTCX Applications
