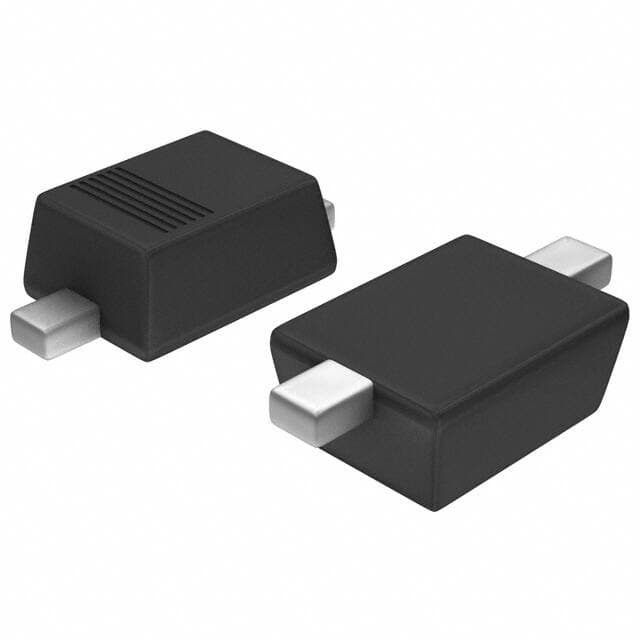

ON Semiconductor 1N914BWS
ON Semiconductor 1N914BWS

ON Semiconductor 1N914BWS

Manufacturer No:

1N914BWS

Manufacturer:

ON Semiconductor

Package:

SC-90, SOD-323F

Description:

Standard Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1V @ 100mA 150°C Max 5?A @ 75V Tape & Reel (TR) SC-90, SOD-323F Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

1N914BWS information

ON Semiconductor 1N914BWS technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N914BWS.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 17 hours ago)
  • Factory Lead Time
  • 18 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-90, SOD-323F
  • Number of Pins
  • 2
  • Supplier Device Package
  • SOD-323F
  • Weight
  • 27.6mg
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2012
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Base Part Number
  • 1N914BW
  • Element Configuration
  • Single
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 5?A @ 75V
  • Power Dissipation
  • 200mW
  • Voltage - Forward (Vf) (Max) @ If
  • 1V @ 100mA
  • Forward Current
  • 150mA
  • Operating Temperature - Junction
  • 150°C Max
  • Current - Average Rectified (Io)
  • 150mA
  • Forward Voltage
  • 1V
  • Max Reverse Voltage (DC)
  • 75V
  • Average Rectified Current
  • 150mA
  • Reverse Recovery Time
  • 4ns
  • Peak Reverse Current
  • 5?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 75V
  • Capacitance @ Vr, F
  • 4pF @ 0V 1MHz
  • Reverse Voltage
  • 75V
  • Max Forward Surge Current (Ifsm)
  • 4A
  • Recovery Time
  • 4 ns
  • Height
  • 1mm
  • Length
  • 1.8mm
  • Width
  • 1.35mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor 1N914BWS.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Packaging:

1N914BWS Overview


A reasonable reverse voltage is 75V.The average rectified current for this device is 150mA volts.The primary action of this electronic or electrical device produces no heat as an unwanted side effect.When the forward current reaches 150mA, it is allowed.A data chart shows that the peak reverse is 5?A in the datasheets.

1N914BWS Features


an average rectified current of 150mA volts
the peak reverse is 5?A


1N914BWS Applications


There are a lot of ON Semiconductor
1N914BWS applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
